Introduction

Datui is an interactive terminal user interface (TUI) for exploring and analyzing data files.

Datui is in rapid development—features and interfaces are evolving.

See It In Action

Use arrow keys or vim-style bindings (j/k for up/down, h/l for left/right) to explore interactively.

For more demonstrations of Datui’s features, see the Demos page.

Getting Started

To get started with Datui, see the Getting Started guide.

Demo Gallery

This page showcases interactive demonstrations of Datui’s features.

Navigation

What it shows:

• Loading a Parquet file (people.parquet)
• Scrolling through data using ↑/ ↓ (or j/k) keys

See Loading Data for more information about file formats and options.

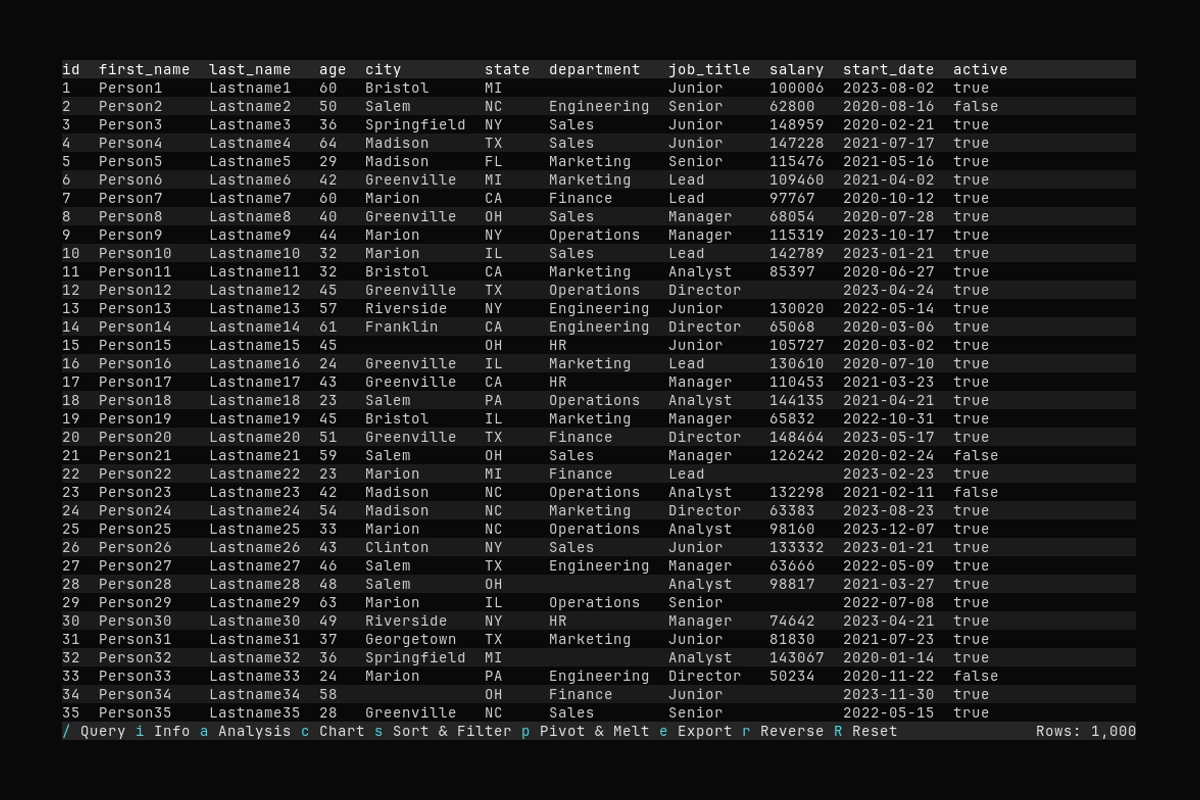

Querying

What it shows:

• Opening the query input with /
• Typing a query: select first_name, last_name, city, salary where salary > 80000
• Executing the query and seeing filtered results

See Querying Data for detailed query syntax and examples.

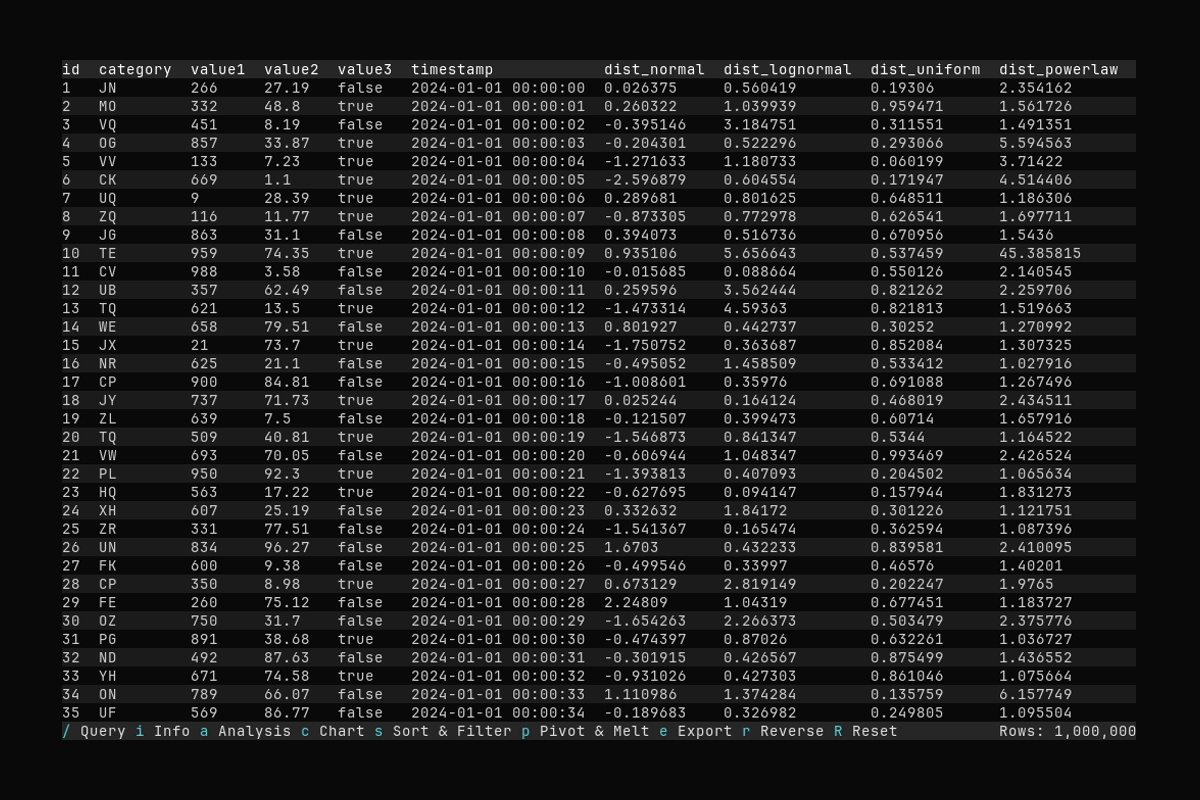

Info Panel

What it shows:

• Opening the Info panel with i
• Viewing information about the dataset

See Dataset Info for details about the Schema and Resources tabs.

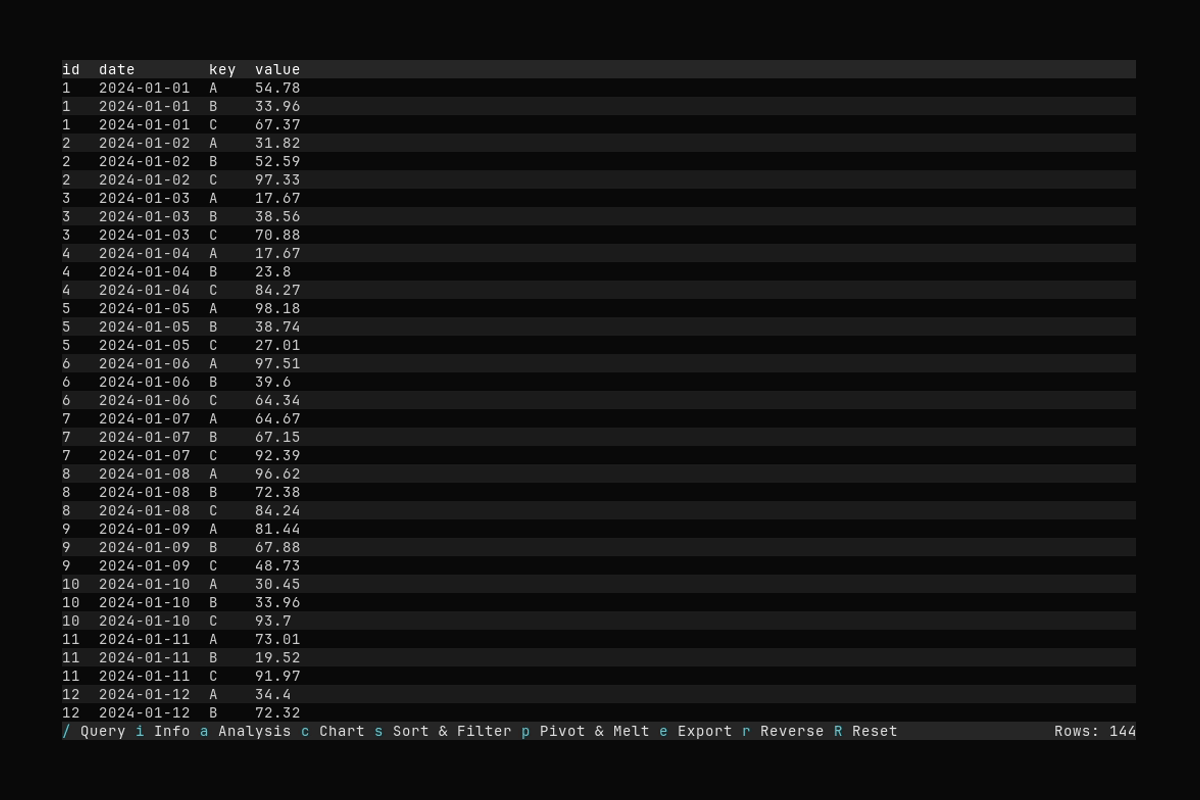

Pivot

What it shows:

• Opening the Pivot & Melt dialog with p
• Selecting index columns and applying a pivot (long → wide)

See Pivot and Melt for pivot and melt options.

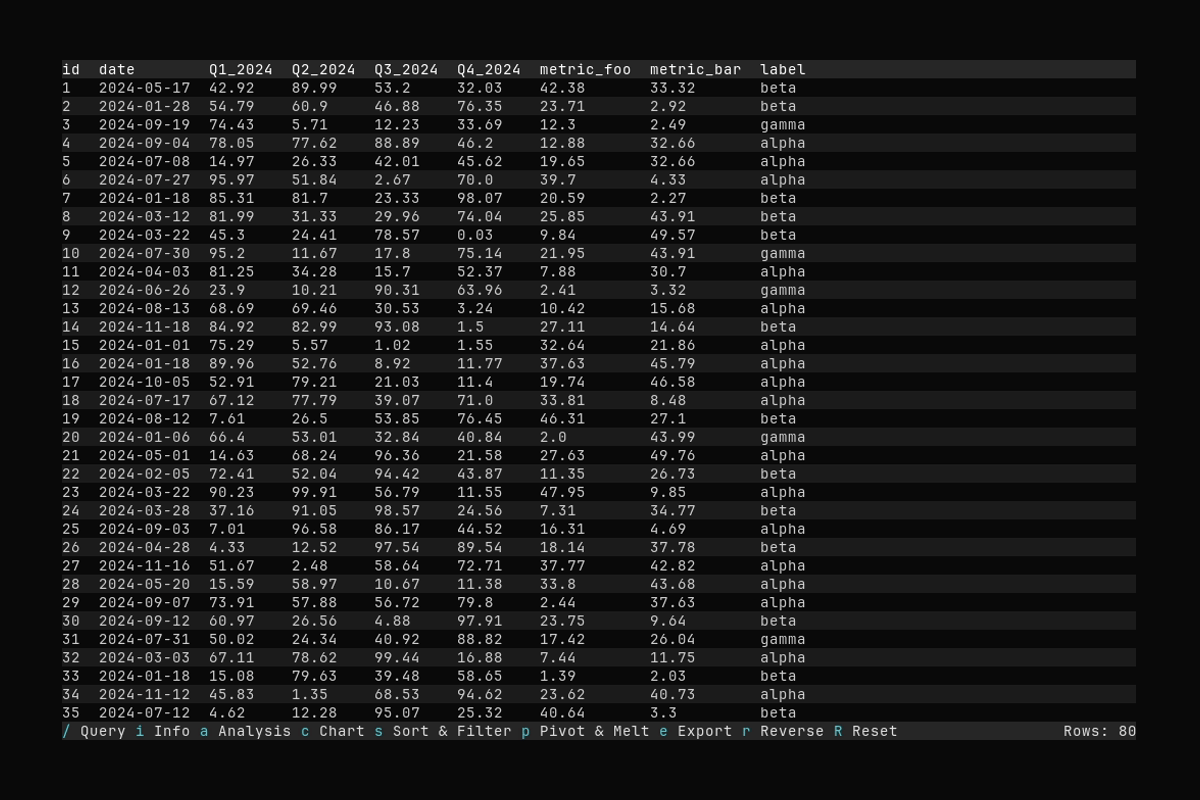

Melt

What it shows:

• Switching to the Melt tab and selecting index columns
• Applying a melt (wide → long)

See Pivot and Melt for pivot and melt options.

Sorting

What it shows:

• Opening the Sort & Filter dialog with s
• Selecting a sort column and applying the sort

See Filtering and Sorting for sort and filter options.

Filtering

What it shows:

• Switching to the Filter tab and adding a filter (e.g. dist_normal > 4)
• Applying the filter to the table

See Filtering and Sorting for sort and filter options.

Export

What it shows:

• Opening export with e and entering an output path
• Exporting the current data to Parquet in /tmp

See Exporting Data for supported formats and options.

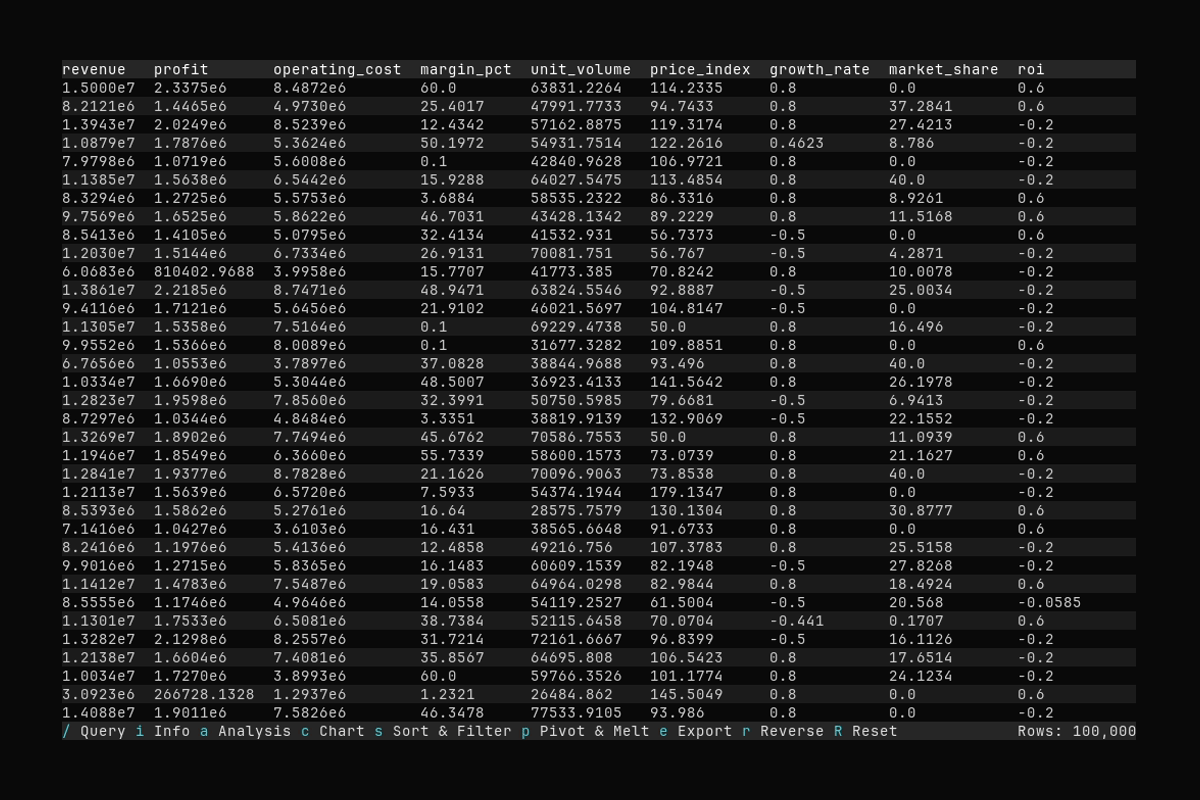

Correlation Matrix

What it shows:

• Opening analysis with a and selecting the Correlation Matrix tool
• Scrolling the correlation matrix

See Analysis Features for details.

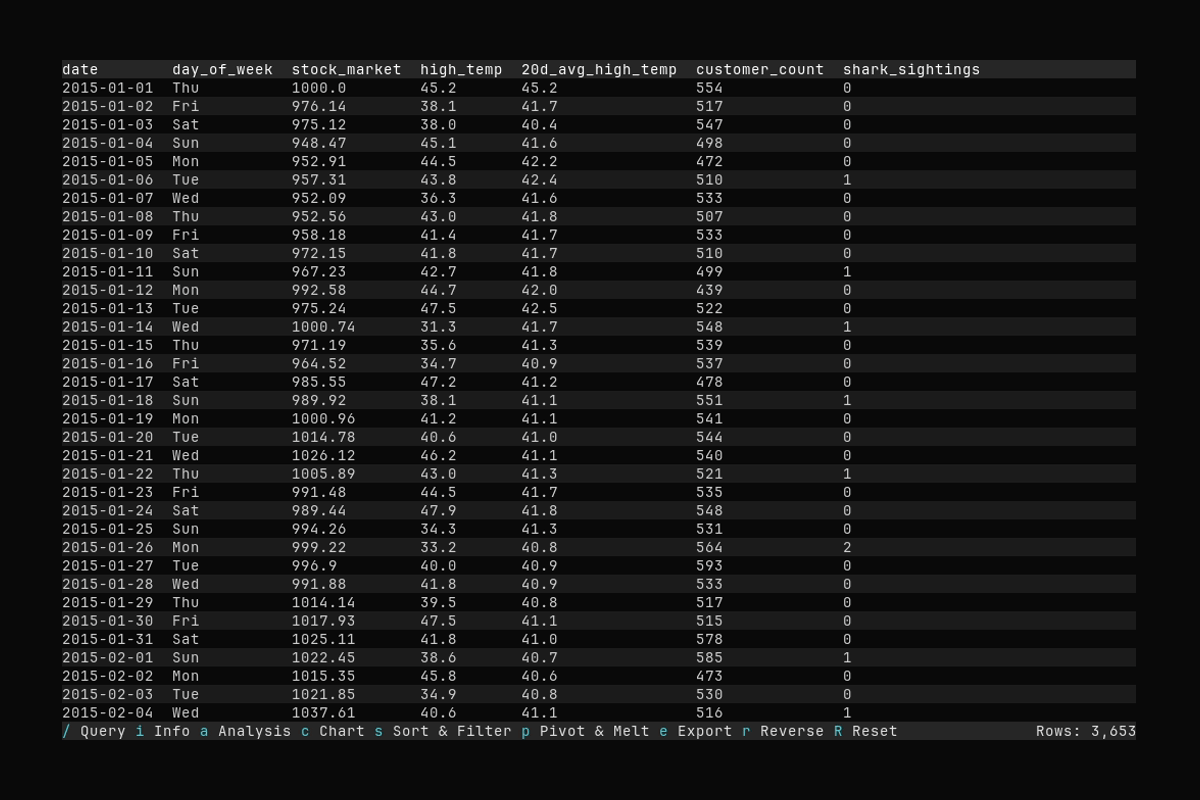

Charting

What it shows:

• Opening the chart with c
• Viewing data in a line chart, and then a scatter plot
• Exporting the chart to a PNG file

See Charting for more details.

Getting Started

See the Installation Manual for instructions to get Datui installed.

Once you have Datui installed, have a look at the Quick Start Guide for a brief introduction.

For Developers

See the For Developers section for more information.

Installation

You can obtain Datui from pre-built releases or by compiling from source.

Once installed, have a look at the Quick Start Guide.

Installing a Pre-built Release

To acquire a pre-built copy of Datui, you may download one from the Datui Releases Page on GitHub.

There is a dev release that tracks the latest development build. This release will have the freshest features but may be less stable.

Package Managers

Arch Linux (AUR)

Datui is available in the Arch User Repository as datui-bin. Install it with an AUR helper such as paru or yay:

paru -S datui-bin

or

yay -S datui-bin

RPM-based (Fedora, RedHat)

Datui is not yet available in the any of the offical repositores for RPM-based distributions.

Get the link to the .rpm file for the release version you want from the Releases Page.

Use dnf to install that link.

dnf install https://github.com/derekwisong/datui/releases/download/vX.Y.Z/datui-X.Y.Z-1.x86_64.rpm

Deb-based (Debian, Ubuntu)

Datui is not yet available in the any of the offical repositores for Deb-based distributions.

Download the .deb file for the release version you want from the Releases Page.

Use apt to install that file:

apt install ./datui-X.Y.Z-1.x86_64.deb

Compiling from Source

Datui is built using Rust, leveraging its Cargo toolkit for compilation.

To compile a release-quality executable, clone the repository and use cargo to build:

git clone https://github.com/derekwisong/datui.git
cd datui
cargo build --release

If desired, before building you could check out a specific release tag

git tag --list
git checkout <tag from the list>
cargo build --release

The datui executable can be found in the target/release directory.

Run it directly, or copy the file to a location on your PATH environment variable to make it discoverable by your terminal.

Using cargo install

You may use cargo to install Datui locally into Cargo’s binary cache. (The ~/.cargo/bin directory on Linux).

cargo install --path .

To run the application you will need to add the Cargo bin directory to your PATH.

On Linux: export PATH=$PATH:~/.cargo/bin

Quick Start

Datui is used to visualize tabular data in the terminal.

See the Installation Manual for help installing Datui.

Opening a File

To open a file, simply provide it as an argument.

datui /path/to/file.csv

Datui will load your data into a full screen terminal display.

See the Loading Data section for details about supported file formats and options.

Navigating

You may scroll through your data using the arrow keys, or familiar vim keybindings (j/k for up/down, h/l for left/right).

You may also jump pages with the Page Up and Page Down keys.

Understanding the UI

• The main Datui view window shows your data in full screen, with a header row at the top and a toolbar across the bottom of the screen.
• The toolbar at the bottom contains a quick reference for the keystrokes to activate the various features of Datui.
• Certain features will open pop-over menus, or change the full screen view. Press Esc to go back to the prior page.

Getting Help

Datui has a built-in help display. Activate it at any time by pressing Ctrl-h. To close it, press Esc.

Learning More

Now that you understand the basics, learn about the rest of Datui’s features by reading the User Guide.

User Guide

See the Reference section for the details of the command line options, keyboard shortcuts, and query syntax.

Configuring Datui

Datui can be configured to your preferences and needs. Set up a configuration file to make it just right for your preferences. See the Configuration Guide for details.

Loading Data

To learn about the supported formats and features when loading a dataset with Datui, see the Loading Data Guide.

Querying, Filtering, and Sorting

Query Syntax

Datui’s query syntax makes filtering, grouping, and aggregating your dataset easy. You can also use it to make drilling down into subgroups of your data simple.

To learn more about it, see the Querying Data Guide.

Filtering and Sorting Dialogs

In addition to a query language, filtering and sorting can be done by using a dialog window in the TUI. See Filtering and Sorting for more.

Pivot and Melt

See the Pivot and Melt Guide to learn about reshaping your data.

Save your Work with Templates

Save and reapply your queries, sorts, and transformations using the Templates system. Templates save your customizations so they can be quickly re-applied later to the same or similar files.

Analysis Features

Use tools to explore characteristics or extract insight from your data. Datui contains a number of tools, such as:

• Discover relationships with a correlation matrix
• Learn about the characteristics of your data with distribution analysis

See the Analysis Features Guide for full details.

Configuration

Datui supports extensive customization through TOML configuration files. You can customize colors, defaults, performance settings, and more.

Quick Start

Generate a default configuration file:

datui --generate-config

This creates ~/.config/datui/config.toml with all available options and helpful comments.

Configuration File Location

• Linux: ~/.config/datui/config.toml
• macOS: ~/.config/datui/config.toml
• Windows: %APPDATA%\datui\config.toml

Configuration Priority

Settings are applied in this order (later values override earlier ones):

1. Default values (hardcoded)
2. Config file (~/.config/datui/config.toml)
3. Command-line arguments (highest priority)

Configuration Sections

File Loading Defaults

Customize how data files are loaded:

[file_loading]
delimiter = 44        # CSV delimiter (44 = comma). null = auto-detect
has_header = true     # Whether files have headers. null = auto-detect
skip_lines = 0        # Lines to skip at file start
skip_rows = 0         # Rows to skip when reading
compression = "gzip"  # Default compression: "gzip", "zstd", "bzip2", "xz". null = auto-detect from extension
parse_dates = true    # When true (default), CSV reader tries to parse string columns as dates (e.g. YYYY-MM-DD, ISO datetime)
decompress_in_memory = false  # When true, decompress compressed CSV into memory; when false (default), decompress to a temp file so scan can be used
temp_dir = null       # Directory for temp files when decompressing compressed CSV. null = system default (e.g. /tmp)

• delimiter — ASCII value of the CSV column separator (e.g. 44 for comma). Omit or set to null to use auto-detection.
• has_header — Whether the first row is a header. Omit or null for auto-detect; true or false to force.
• skip_lines / skip_rows — Number of lines (or rows) to skip before reading the header and data.
• compression — Default compression format when the file extension does not indicate one. Omit or null for auto-detect from extension.
• parse_dates — When true (default), the CSV reader attempts to parse string columns that look like dates (e.g. YYYY-MM-DD, YYYY-MM-DDTHH:MM:SS) into Polars Date or Datetime. Set to false to keep such columns as strings. Overridden by the --parse-dates CLI flag (e.g. --parse-dates false to disable; see command-line options).
• decompress_in_memory — When false (default), compressed CSV is decompressed to a temporary file so the lazy CSV reader can scan it. When true, compressed data is decompressed into memory (eager load). Use true if you have no temp filesystem. Overridden by --decompress-in-memory / --decompress-in-memory false.
• temp_dir — Directory used for temporary files when decompressing compressed CSV. Omit or set to null to use the system default (e.g. /tmp on Unix). Overridden by the --temp-dir CLI option.

Display Settings

Control how data is displayed:

[display]
pages_lookahead = 3   # Pages to buffer ahead (smoother scrolling)
pages_lookback = 3    # Pages to buffer behind
row_numbers = false   # Show row numbers on left side
row_start_index = 1   # Starting index for row numbers (0 or 1)
table_cell_padding = 1   # Spaces between columns in the main table (>= 0)

Example: Enable row numbers starting at 0

[display]
row_numbers = true
row_start_index = 0

Performance Settings

Tune performance and responsiveness:

[performance]
sampling_threshold = 10000   # Sample datasets >= this size
event_poll_interval_ms = 25  # UI polling interval (lower = more responsive)

Memory vs Speed:

• Increase sampling_threshold to avoid sampling (uses more memory, full accuracy)
• Decrease sampling_threshold for faster analysis on large datasets (uses less memory)

Color Themes

Customize the entire UI appearance:

[theme.colors]
keybind_hints = "cyan"              # Keybind hints
keybind_labels = "yellow"           # Action labels
primary_chart_series_color = "cyan" # Chart data
secondary_chart_series_color = "dark_gray" # Chart theory
chart_series_color_1 = "cyan"       # Chart view: first series
chart_series_color_2 = "magenta"    # Chart view: second series
chart_series_color_3 = "green"      # Chart view: third series
chart_series_color_4 = "yellow"    # Chart view: fourth series
chart_series_color_5 = "blue"      # Chart view: fifth series
chart_series_color_6 = "red"       # Chart view: sixth series
chart_series_color_7 = "bright_cyan" # Chart view: seventh series
error = "red"                       # Error messages
success = "green"                   # Success indicators
warning = "yellow"                  # Warnings
dimmed = "dark_gray"                # Dimmed elements
alternate_row_color = "default"    # Background for every other row ("default" = off, or a color name)

Color Formats

Three color formats are supported:

1. Named Colors

keybind_hints = "cyan"
error = "bright_red"
dimmed = "dark_gray"
background = "default"  # Use terminal default background
text_primary = "default"  # Use terminal default text color

Available names:

• Basic: black, red, green, yellow, blue, magenta, cyan, white
• Bright: bright_red, bright_green, bright_blue, etc.
• Grays: gray, dark_gray, light_gray
• Special: reset or default (uses terminal default colors - works in both light and dark themes)

2. Hex Colors

background = "#1e1e1e"
sidebar_border = "#007acc"
controls_bg = "#2d2d2d"

• Format: #rrggbb (6 hex digits)
• Case-insensitive: #FF0000 or #ff0000
• Automatically adapted to your terminal’s capabilities

3. Indexed Colors

controls_bg = "indexed(236)"  # Example: specific palette entry
surface = "indexed(239)"

• Direct reference to xterm 256-color palette (0-255)
• Respects your terminal’s color scheme
• Useful for matching specific terminal themes

Terminal Compatibility

Colors automatically adapt to your terminal:

• True color terminals (Alacritty, kitty, iTerm2): Hex colors display exactly
• 256-color terminals (xterm-256color): Hex converted to nearest palette match
• Basic terminals (8/16 colors): Colors map to nearest ANSI color
• Monochrome: Set NO_COLOR=1 to disable colors
• Light Theme Support:
  • The default values for background and text_primary are set to "default"
  • Datui will inherit your terminal’s default colors
  • The application renders correctly in both light and dark terminal themes
  • Be aware that setting explicit colors like "black" or "white" may result in poor visibility in certain terminal themes

Available Colors

All UI colors can be customized:

Query System

Configure query behavior:

[query]
history_limit = 1000      # Max queries to remember
enable_history = true     # Enable query history

Template Settings

Configure template behavior:

[templates]
auto_apply = false  # Auto-apply most relevant template on file open

Debug Settings

Configure debug overlay:

[debug]
enabled = false             # Show debug overlay by default
show_performance = true     # Show performance metrics
show_query = true           # Show LazyFrame query
show_transformations = true # Show transformation state

Example Configurations

Minimal Configuration

Simple customization for common preferences:

version = "0.2"

[display]
row_numbers = true
row_start_index = 0

[theme.colors]
keybind_hints = "blue"

Dracula Theme

Complete Dracula color scheme using hex colors:

version = "0.2"

[theme.colors]
keybind_hints = "#bd93f9"              # Purple
keybind_labels = "#ff79c6"             # Pink
primary_chart_series_color = "#bd93f9" # Purple
secondary_chart_series_color = "#6272a4" # Comment gray
success = "#50fa7b"                    # Green
error = "#ff5555"                      # Red
warning = "#ffb86c"                    # Orange
dimmed = "#6272a4"                     # Comment gray

background = "#282a36"                 # Background (Dracula dark)
surface = "#44475a"                    # Current line
controls_bg = "#44475a"                # Controls bar

text_primary = "#f8f8f2"               # Foreground
text_secondary = "#6272a4"             # Comment
text_inverse = "#282a36"               # Background (for inverse)

table_header = "#f8f8f2"               # Foreground
table_header_bg = "#44475a"            # Current line
column_separator = "#bd93f9"            # Purple
table_selected = "reversed"

sidebar_border = "#6272a4"             # Comment gray
modal_border_active = "#ff79c6"        # Pink
modal_border_error = "#ff5555"         # Red

distribution_normal = "#50fa7b"         # Green
distribution_skewed = "#ffb86c"         # Orange
distribution_other = "#f8f8f2"          # Foreground
outlier_marker = "#ff5555"              # Red

Performance Tuned

Optimize for large datasets:

version = "0.2"

[display]
pages_lookahead = 5   # More buffering for smoother scrolling
pages_lookback = 5

[performance]
sampling_threshold = 50000  # Sample only very large datasets
event_poll_interval_ms = 16 # ~60 FPS polling (more responsive)

High Contrast Theme

Using named colors for maximum compatibility:

version = "0.2"

[theme.colors]
keybind_hints = "bright_cyan"
keybind_labels = "bright_yellow"
primary_chart_series_color = "bright_cyan"
secondary_chart_series_color = "dark_gray"
error = "bright_red"
success = "bright_green"
warning = "bright_yellow"
dimmed = "dark_gray"

background = "black"
controls_bg = "dark_gray"
text_primary = "bright_white"

Command-Line Overrides

CLI arguments always override config file settings:

# Config has row_numbers = true, but disable for this run:
datui data.csv --row-numbers=false

# Override page buffering:
datui data.csv --pages-lookahead 10

# Override delimiter:
datui data.csv --delimiter=9  # Tab character (ASCII 9)

Managing Configuration

View Current Config

Your config file is at ~/.config/datui/config.toml. Edit it with any text editor:

# Linux/macOS
nano ~/.config/datui/config.toml
vim ~/.config/datui/config.toml
code ~/.config/datui/config.toml

# Windows
notepad %APPDATA%\datui\config.toml

Reset to Defaults

Regenerate the default config file:

datui --generate-config --force

This overwrites your existing config with a fresh template.

Remove Configuration

Simply delete the config file:

# Linux/macOS
rm ~/.config/datui/config.toml

# Windows
del %APPDATA%\datui\config.toml

Datui will use default values when no config file exists.

Troubleshooting

Config Not Loading

If your config isn’t being used:

1. Check file location: Ensure config is at ~/.config/datui/config.toml
2. Check syntax: TOML must be valid. Run datui <file> and check for warnings
3. Check version: Config must start with version = "0.2"
4. Check validation: Ensure values are in valid ranges (e.g., sampling_threshold > 0)

Invalid Color

If you see an error about invalid colors:

Error: Invalid color value for 'keybind_hints': Unknown color name: 'notacolor'

Solutions:

• Use valid color names (see list above)
• Use hex format: #ff0000
• Use indexed format: indexed(236)
• Check spelling and case (names are case-insensitive)

Config Parse Error

If TOML parsing fails:

Error: Failed to parse config file: expected newline, found ...

Solutions:

• Check TOML syntax at https://toml.io/
• Ensure proper quotes around strings
• Verify no typos in section names
• Regenerate config: datui --generate-config --force

Colors Look Wrong

If colors don’t look right:

1. Check terminal capabilities: Some terminals don’t support true color
2. Try named colors: More portable than hex colors
3. Try indexed colors: Match your terminal’s palette exactly
4. Check NO_COLOR: Unset with unset NO_COLOR if colors are disabled

Table Headers or Toolbar Text Cut Off or Deformed (VS Code, xterm-256)

On some terminals (e.g. VS Code integrated terminal, xterm-256color), custom background colors on headers/toolbar can cause text to render cut off or deformed. By default, controls_bg and table_header_bg use indexed(235), which works well on most setups.

If you see deformed text, set them to "default" or "none" for no custom background:

[theme.colors]
controls_bg = "default"
table_header_bg = "default"

See Also

• Command-Line Options - CLI flags that override config
• Quick Start Guide - Getting started with datui
• Keyboard Shortcuts - Available keybindings

Loading Data

Load data with Datui by passing it command line options and a path to open.

Supported Formats

Eager load only — The file is read fully into memory before use; no lazy streaming. Hive partitioning — Use the --hive flag with a directory or glob; see Hive-partitioned data below. Excel — Use the --sheet flag to specify which sheet to open.

CSV date inference — By default, CSV string columns that look like dates (e.g. YYYY-MM-DD, YYYY-MM-DDTHH:MM:SS) are parsed as Polars Date/Datetime. Use --parse-dates false or set parse_dates = false in configuration to disable.

Compression

Compressed files will be identified by extension and decompressed before loading.

Command line options may be used to set the compression used when there is no extension or it is incorrect

Supported Compression Formats

• gz
• zstd
• bzip2
• xz

Hive-partitioned data

You can load a Hive-style partitioned dataset (e.g. a directory tree with key=value segment names such as year=2024/month=01/) by using the --hive flag and passing a directory or a glob pattern instead of a single file.

• Directory: point at the partition root, e.g. datui --hive /path/to/data
• Glob: use a pattern that matches the partition layout, e.g. datui --hive /path/to/data/**/*.parquet
  You may need to quote the glob so your shell does not expand it (e.g. datui --hive "/path/to/data/**/*.parquet").

Only Parquet is supported for hive-partitioned loading. If you pass a single file with --hive, it is loaded as usual and the flag is ignored.

Partition columns (the keys from the path, e.g. year, month) are shown first in the table and listed in the Info panel under the Partitioned data tab.

Querying Data

See the Query Syntax Reference for additional detail about the structure of Datui queries.

Selecting Columns

The select clause can be used to select columns:

select a, b, c

Use select alone to select all columns:

select

Rename columns using the : assignment operator (creates a column d that is the same as a):

select a, b, c, d: a

To create, or query, columns with spaces in their names, use the col["name"] syntax:

select no_spaces:col["name with spaces"]

or

select col["name with space"]: no_spaces

Filtering Results

The where clause can be used to filter results.

select where a > 10

Separate where clause expressions with , (logical and).

Get all data where a > 10 and b < 2:

select where a > 10, b < 2

Use the | to form a logical or between a bool column and a numeric:

select where some_bool | a > 10

Select a, b, and c where a > 10 and b < 2 and (d > 7 or e = 2)

select a, b, c where a > 10, b < 2, (d > 7) | (e = 2)

Calculations and Transformations

There is a simple expression language built-in to the query language using: +, -, *, and % for arithmetic (the % is division, not modulo).

select a, b: c+d where c > 0

See the Syntax Reference for important details about the expression syntax.

Working with dates and times

For columns of type Date or Datetime, use dot accessors to extract components:

select event_date: timestamp.date, year: timestamp.year
select where created_at.date > 2024.01.01, created_at.month = 12
select order_date, order_date.month, order_date.dow by order_date.year

Use YYYY.MM.DD for date literals in comparisons (e.g. where dt_col.date > 2021.01.01).

Available accessors include date, time, year, month, week, day, dow (day of week), month_start, month_end, and tz (timezone). See the Query Syntax Reference for the full list and more examples.

Grouping and Aggregation

The by clause in the query language allows you to group your data, or aggregate it within group.

Enabling Drill-Down with Grouping

Executing a query with a by clause will result in a grouped table. This table can be drilled down into through the UI by selecting the resultant grouped row and pressing Enter. Go back to the grouped result by pressing Esc.

select name, city, state, salary by department

Aggregate Queries

Using the same by syntax, you can introduce an aggregation function to summarize your data.

select min_salary: min salary, avg_salary: avg salary, max_salary: max salary by department

Filtering and Sorting

Open the Sort & Filter dialog with s. The dialog has two tabs:

Sorting demo:

Filtering demo:

• Sort: Manage column order, sort order, locking, and visibility.
• Filter: Add and manage row filters (column, operator, value).

Use Tab / Shift+Tab to move focus; Left / Right on the tab bar to switch tabs. Apply runs changes and closes the dialog; Cancel closes without applying; Clear resets the current tab.

Exporting Data

The data export controls can be used to save your data to a file.

Press the e key from the main window to export your data. See Keyboard Shortcuts.

Supported Formats

You can export to: CSV, Parquet, JSON, NDJSON, Arrow IPC (.arrow), and Avro (.avro).

Excel is supported for loading only, not export.

See Loading Data for the full list of input formats.

Chart View

The chart view shows your current data as a line, scatter, or bar chart.

Press c from the main view to open the chart.

Controls in Chart View

• Chart type: Line, Scatter, or Bar (cycle with ↑/↓ or ←/→ when focused).
• X axis: Search for and select a numeric or temporal column (single selection).
• Y axis: Search for and select one or more numeric columns. Use Space to toggle columns on or off; up to seven series can be plotted at once.
• Options:
  • Y axis starts at 0 (defaults to data range)
  • Log scale
  • Show legend
• Tab / Shift+Tab move focus
• Esc returns to the main view

Export to File

Press e to open the chart export dialog.

• Choose format
• Enter a file path
• Press Enter or navigate to the Export button to export.

If the file already exists, you will be asked to confirm overwrite.

Extensions (like .png, .eps) are added automatically if missing.

Configuration

Series colors can be configured in theme.colors as chart_series_color_1 through chart_series_color_7. See Configuration.

Dataset Info Panel

The Info panel shows technical details about the loaded dataset. Press i from the main view to open it. Esc or i closes it.

Navigation (when the panel is open):

• Tab / Shift+Tab: On the Schema tab, move focus between the tab bar and the schema table. On the Resources tab, focus stays on the tab bar.
• Left / Right: On the tab bar, switch between Schema and Resources.
• ↑ / ↓: When the schema table has focus (Schema tab), scroll the column list and change the selection. The first row is selected by default when the Schema tab is active.

Tabs

Schema

• Rows (total) and Columns: Size of the full dataset (not the visible slice).
• Columns by type: Counts per data type (e.g. Int64: 3 · Utf8: 2).
• Schema: Known / Inferred: Parquet uses a stored schema (Known); CSV and JSON infer types (Inferred).
• Column table: Name, type, source, and for Parquet files optionally Compression (codec and ratio per column).

Resources

• File size: Size on disk (when loaded from a file).
• Buffered (visible): Estimated memory of the currently buffered slice (not the full dataset).
• Parquet: Overall compression ratio, row groups, version, and Created by when available.
• Format: Detected format (CSV, Parquet, JSON, NDJSON).

See also

• Keyboard Shortcuts

Analysis Mode

Use Datui to get insights about your data.

For large datasets, analysis tools operate on sampled data. This means that a subset of the data will be drawn. You can resample the data with the r key.

You may adjust the size threshold at which the full dataset will not be used and instead be sampled. See Configuration for details about adjusting the threshold.

Starting Analysis Mode

Open analysis mode using the a key.

See Keyboard Shortcuts for more key bindings.

You will see a collection of tools on the right. Using the Tab key to navigate to the list, select a tool to analyze your data with. The Describe tool is selected by default.

To exit analysis mode, press the Esc key.

Tools

Describe

Displays summary statistics about your data, similar to Polars’ describe.

Distribution Analysis

• Compares your data against a set of hypothetical distributions and suggests the best fit.
• Select a column and press Enter on it to view a Q-Q plot and a histogram for the column.

Correlation Matrix

Discover the relationships in your data with the correlation matrix tool. Colors are used to note the degree of correlation.

Pivot and Melt

Datui supports reshaping tabular data between long and wide formats via the Pivot & Melt dialog. Open it with p from the main view.

Pivot demo:

Melt demo:

• Pivot (long → wide): Turn rows with a key column into new columns. Example: id, date, key, value → id, date, key_A, key_B, key_C.
• Melt (wide → long): Collapse many columns into variable and value columns. Example: id, Q1, Q2, Q3 → id, variable, value.

Both operations run on the current table—i.e. the result of any filters, sorts, or queries you’ve applied. You can filter or sort first, then pivot or melt that view.

Pivot (long → wide)

Pivoting a table is by nature an eager operation. To form the columns, the data must be read. Be sure to filter or query the data as appropriate before pivoting to manage memory usage.

1. Index columns: Group columns that stay on the left (e.g. id, date). Use the filter to search, Space to toggle selection. Order matters.
2. Pivot column: The column whose distinct values become new column headers (e.g. key → A, B, C). Use ↑/↓ to select.
3. Value column: The column whose values fill the new cells. Use ↑/↓ to select.
4. Aggregation: How to combine multiple values per group: last, first, min, max, avg, med, std, count. Default is last. If the value column is string-typed, only first and last are available.
5. Sort new columns: Toggle to sort new column names alphabetically.

Apply runs the pivot and closes the dialog. Cancel or Esc closes without changing the table. Clear resets the form.

Melt (wide → long)

1. Index columns: Columns to keep as identifiers (e.g. id, date). Same multi-select pattern as Pivot.
2. Value-column strategy:
   • All except index: Melt every column not in the index. Good default when you want to unpivot all measure columns.
   • By pattern: Regex over column names (e.g. Q[1-4]_2024, metric_.*). Type the pattern in the Pattern field.
   • By type: Melt all Numeric, String, Datetime, or Boolean columns (excluding index).
   • Explicit list: Manually pick value columns with Space to toggle.
3. Variable name / Value name: Output column names for the melted dimension and values. Defaults: variable, value.

Apply runs the melt and closes the dialog. Cancel or Esc closes without applying. Clear resets the form.

Keyboard Shortcuts

• Tab / Shift+Tab: Move focus (tab bar → form fields → Apply → Cancel → Clear → tab bar).
• Left / Right: On the tab bar, switch between Pivot and Melt. In text fields (filter, pattern, variable/value names), move the cursor.
• ↑ / ↓: Move selection in lists (index, pivot, value, aggregation, strategy, type, explicit list).
• Space: Toggle selection in index and explicit value lists; toggle “Sort new columns” in Pivot.
• Enter: Activate focused control (Apply, Cancel, Clear).
• Esc: Close dialog without applying.
• Ctrl+h: Show help.

Templates

Pivot and melt settings can be saved in templates. When you save a template from the current view (e.g. after applying a pivot or melt), the reshape spec is stored. Applying that template (e.g. with T for the most relevant template, or from the template manager) will run query → filters → sort → pivot or melt → column order in that order, so the same reshape is applied appropriately in the lazyframe processing flow.

Templates

Datui’s templates allow you to store the queries, filters, and transformations you have applied. This way, you can re-use them with other datasets!

Creating a Template

1. To save a template, press the t key to load the template dialog
2. Press s to save the template
3. Enter a name and an optional description
4. Use the dialog to set additional options and save the template

Loading a template

To load a template, press the t key to load the template dialog. Select the desired template from the list and press Enter to load it.

Automatically Load Best-Fit Template

Templates are scored against your dataset by a few characteristics to determine if they can be applied to your loaded dataset. The template dialog will indicate the fit with a symbol on the left-most column of the list.

You may automatically load the best-fit template using the T (capital-T) keybind.

Reference

This section contains information about specific topics.

• Customize with Command Line Options
• See an overview of Keyboard Shortcuts
• Learn about the Datui Query Syntax

Command Line Options

Usage

Usage: datui [OPTIONS] [PATH]...

Options

Keyboard Shortcuts

In the main view, the following keyboard shortcuts are available.

Busy state: When the app is working (loading data, scrolling, exporting, analysis, pivot/melt), a throbber appears in the control bar.

Navigation (main table):

Actions:

Query Syntax Reference

This document details the syntax of the Datui query language. For examples and typical workflows, see Querying Data.

Structure of a query

A query has the form:

select [columns] [by group_columns] [where conditions]

• select — Required. Starts every query. May be followed by nothing (select all columns), or a comma‑separated list of column expressions.
• by — Optional. Grouping and aggregation. Everything after by up to where (if present) is the group specification.
• where — Optional. Filtering. Everything after where is the filter expression.

Clause order is fixed: select → by → where. The parser splits on the keywords where and by (respecting parentheses and brackets), so you cannot reorder or repeat clauses.

The : assignment (aliasing)

Use : to name an expression. The form is name : expression:

• Left of : — The new column or group name. Must be an identifier (e.g. total) or col["name with spaces"].
• Right of : — The expression (column reference, literal, arithmetic, function call, etc.).

Examples:

select a, b, sum_ab: a + b
select renamed: col["Original Name"]
by region_name: region, total: sales + tax

Assignment is supported in both the select and by clauses. In by, it defines computed group keys or renames (e.g. region_name: region, total: sales + tax). Expressions may use column references, arithmetic, literals, and function calls.

Columns with spaces in their names

Identifiers cannot contain spaces. For columns (or aliases) with spaces, use col["..."] or col[identifier]:

select col["First Name"], col["Last Name"]
select no_spaces: col["name with spaces"]

Inside the brackets use either a quoted string ("name with spaces") or a single identifier (no spaces). The same syntax works in select, by, and where.

Right‑to‑left expression parsing

Expressions are parsed right‑to‑left: the leftmost binary operator is the root, and the right subexpression is parsed first (so it effectively binds tighter).

What this means

• a + b * c → parsed as a + (b * c) (multiplication binds tighter).
• a * b + c → parsed as a * (b + c) (* is leftmost; the right subexpression b + c is parsed as a unit).

So “higher‑precedence”‑style grouping happens when you put those operations on the right. You can often avoid parentheses by ordering:

select x, y: a * b + c    →  a * (b + c)
select x, y: a + b * c    →  a + (b * c)

Using parentheses

Use () to override grouping:

select (a + b) * c
select a, b where (x > 1) | (y < 0)

Parentheses also matter for , and | in where: splitting on comma and pipe respects nesting, so you can wrap ORs (or more complex logic) in () and then combine with commas. See Where clause: , and |.

Select clause

• select alone — All columns, no expressions.
• select a, b, c — Those columns (and/or expressions), in order.
• select a, b: x + y, c — Columns and aliased expressions.

Columns are separated by ,. Each item is either a plain expression or alias : expression. The same expression rules (arithmetic, col[], functions, etc.) apply everywhere.

By clause (grouping and aggregation)

• by col1, col2 — Group by those columns. Non‑group columns become list columns; the UI supports drill‑down.
• by region, total: sales + tax — Group by region and a computed expression (e.g. arithmetic).
• select avg salary, min id by department — Aggregations per group.

By uses the same comma‑separated list and name : expression rules as select. Aggregation functions (avg, min, max, count, sum, std, med) can be written as fn[expr] or fn expr (brackets optional).

Where clause: , and |

The where clause combines conditions using two separators:

• , — AND. Each comma‑separated segment is one ANDed condition.
• | — OR. Within a single comma‑separated segment, | separates alternatives that are ORed together.

Parsing order:

1. Split the where part on , (respecting () and []). Each segment is ANDed.
2. Within each segment, split on |. The pieces are ORed.

So:

• where a > 10, b < 2 → (a > 10) AND (b < 2).
• where a > 10 | a < 5 → (a > 10) OR (a < 5).
• where a > 10 | a < 5, b = 2 → (a > 10 OR a < 5) AND (b = 2).

Interaction of , and |

, has broader scope than |: it splits the where clause into top‑level AND terms. | only groups within one of those terms. So:

• A, B | C = A AND (B OR C).
• A | B, C | D = (A OR B) AND (C OR D).

To express (A or B) and (C or D), use (A)|(B), (C)|(D). Parentheses keep | inside each AND term. For more complex logic, use () to group OR subexpressions, then separate those groups with ,.

Comparison operators

In where conditions, each comparison operator compares a left-hand expression (often a column) to a right-hand expression (column, literal, or expression).

Operators and literals

• Arithmetic: + - * % ( % is division, not modulo).
• Comparison: See Comparison operators (where clauses) above.
• Literals: Numbers (42, 3.14), strings ("hello", \" for embedded quotes), date literals (2021.01.01 in YYYY.MM.DD format), timestamp literals (2021.01.15T14:30:00.123456 in YYYY.MM.DDTHH:MM:SS[.fff…] format; fractional seconds set precision: 1–3 digits = ms, 4–6 = μs, 7–9 = ns).
• Coalesce: ^ — first non-null from left to right. a^b^c = coalesce(a, b, c). Right-to-left binding: a^b^c = a^(b^c).

Date and datetime accessors

For columns of type Date or Datetime, use dot notation to extract components:

column_ref.accessor

Datetime accessors

Apply to Datetime columns (with or without timezone):

Date accessors

Apply to Date columns:

String accessors

Apply to String columns:

Accessor aliases

When you use an accessor on a column, the result is automatically aliased to {column}_{accessor} (e.g. timestamp.date → timestamp_date). This avoids duplicate column names and keeps results clear.

Syntax examples

Select:

select event_date: timestamp.date
select col["Created At"].date, col["Created At"].year
select name, event_time.time
select order_date, order_date.month, order_date.dow by order_date.year

Where (with date literal YYYY.MM.DD, timestamp literal):

select where created_at.date > other_date_col
select where dt_col.date > 2021.01.01
select where ts_col > 2021.01.15T14:30:00.123456
select where event_ts.month = 12, event_ts.dow = 1
select where city_name.ends_with["lanta"]
select where null col1
select where not null col1

Select (coalesce, string accessors, format):

select a: coln^cola^colb
select name.len, name.upper, dt_col.format["%Y-%m"]

Functions

Functions are used for aggregation (typically in select with by) and for logic in where. Write fn[expr] or fn expr; brackets are optional.

Aggregation functions

Logic functions

Scalar functions

Summary

Advanced Topics

For help keeping things fast, see Performance Tips.

Performance Tips

Sampling in Analysis Mode

When you use Datui’s Analysis Mode, the application may automatically sample from your data rather than analyzing every row. Sampling is used to improve responsiveness and keep memory usage low when working with very large datasets.

By default, if your table contains more rows than a set threshold, Datui will analyze a representative sample instead of the full dataset. This threshold can be adjusted in the configuration file. To learn how to change the sampling limit, see the Configuration Guide: Analysis & Performance Settings.

Pivot is Eager

In order to determine all column names, pivot operations materialize all affected data in memory, which may increase RAM usage significantly for large tables.

Do as much filtering on the data as possible before pivoting to keep things manageable.

For Developers

• Written in Rust
• Terminal UI made with Ratatui
• Powered by Polars
• Documented using mdBook
• Demo GIFs created with vhs

Install Rust

If you don’t have Rust installed, please see the Rust Installation Instructions.

Workspace and crates

The repo is a Cargo workspace. The root package is the CLI binary; the core logic lives in a library crate:

From the repo root:

• cargo build — build the datui CLI binary (and its dependency, datui-lib).
• cargo run — run the CLI (e.g. cargo run -- --help).
• cargo build --workspace — build all workspace packages (root + crates/datui-lib + crates/datui-cli).
• cargo test --workspace — test all workspace packages.
• cargo run -p datui-cli --bin gen_docs — run the docs generator (used by the docs build script).

No special config (e.g. default-members or .cargo/config) is needed; the root package is the binary.

Compiling

Compile Datui using cargo:

# Build the CLI binary (default from root)
cargo build

# Build everything (CLI + library + gen_docs)
cargo build --workspace

# Release build of the CLI (what gets installed / packaged)
cargo build --release

• The datui CLI binary is at target/debug/datui or target/release/datui (built from the root package).
• The gen_docs binary is built from datui-cli and is used by the documentation build.
• datui-pyo3 is the Python binding crate; it is not a workspace member. See Python Bindings for how to build and test it.

The release build will take significantly longer to compile than debug. But, the release build is faster and has significantly smaller size.

More Resources

• Python Bindings — build, test, and run the Python extension (maturin, venv, pytest)
• There is a Setup Script that will help you get your environment ready
• Learn how to run the tests
• Build OS packages (deb, rpm, AUR) with Building Packages
• See the Contributing Guide for more

Running the Tests

Running the tests is done using Cargo’s test command.

# Run all workspace tests (root datui + datui-lib + datui-cli)
cargo test --workspace

From the repo root, cargo test without --workspace runs only the root package (the datui CLI). Use cargo test --workspace to include datui-lib and datui-cli tests (e.g. CI and full local check). The datui-pyo3 crate is not in the workspace; to run Python binding tests, use pytest python/tests/ after installing the package with maturin develop (see Python package).

However, the tests require sample data which are too large to add to the repo. Instead, the data must be generated before the tests can be run.

Generating Sample Data

If you used the Setup Script, the sample data has already been generated. To regenerate the data, see the instructions

The tests will automatically run a Python script to generate the sample files if they do not already exist. However, that script has some dependencies.

To install the dependencies, I recommend following the Python Virtual Environment Setup Instructions from the Contributing section.

Once you have a Python virtual environment set up with the requirements.txt from the scripts/ directory, and activated it, you’re ready to run the tests for the first time.

# activate the virtual environment if sample data is not already generated
source .venv/bin/activate

# run the tests
cargo test --workspace

The tests will look for the files and run the generation script if they don’t already exist. Having the virtual environment activated before running tests for the first time ensures the automatic generation goes smoothly.

After the files are built you don’t need to have that environment activated anymore to run tests.

Regenerating or Updating the Sample Data

You can run the data generation script yourself:

python scripts/generate_sample_data.py

The data will not be automatically regenerated in the future. Use the script to regenerate the data when necessary.

Adding Configuration Options

When adding new configuration options to datui, follow this process:

Process Overview

Adding a new configuration option requires updates in 7 places:

1. Config struct definition
2. Default implementation
3. Merge logic
4. Comment constants (for generated configs)
5. Application code usage
6. Tests
7. Documentation

Step-by-Step Guide

1. Add Field to Config Struct

Add the new field to the appropriate config struct in src/config.rs:

#![allow(unused)]
fn main() {
#[derive(Debug, Clone, Serialize, Deserialize)]
#[serde(default)]
pub struct DisplayConfig {
    pub pages_lookahead: usize,
    pub pages_lookback: usize,
    pub row_numbers: bool,
    pub row_start_index: usize,
    pub font_size: Option<u8>,  // NEW FIELD
}
}

2. Update Default Implementation

Add the default value in the Default trait:

#![allow(unused)]
fn main() {
impl Default for DisplayConfig {
    fn default() -> Self {
        Self {
            pages_lookahead: 3,
            pages_lookback: 3,
            row_numbers: false,
            row_start_index: 1,
            font_size: None,  // NEW: None = use terminal default
        }
    }
}
}

3. Update Merge Logic

Add merge handling in the section’s merge() method:

#![allow(unused)]
fn main() {
impl DisplayConfig {
    pub fn merge(&mut self, other: Self) {
        let default = DisplayConfig::default();
        // ... existing merge logic ...

        // NEW: Merge font_size (Option fields)
        if other.font_size.is_some() {
            self.font_size = other.font_size;
        }
    }
}
}

Merge rules:

• Option fields: If other.field.is_some(), take the value
• Non-Option fields: If other.field != default.field, take the value

4. Add Config File Comments

The default config file is populated with comments useful to users.

Add comments to the comment constant array right after the struct definition in src/config.rs:

#![allow(unused)]
fn main() {
#[derive(Debug, Clone, Serialize, Deserialize)]
#[serde(default)]
pub struct DisplayConfig {
    pub pages_lookahead: usize,
    pub pages_lookback: usize,
    pub row_numbers: bool,
    pub row_start_index: usize,
    pub font_size: Option<u8>,  // NEW FIELD
}

// Field comments for DisplayConfig
const DISPLAY_COMMENTS: &[(&str, &str)] = &[
    // ... existing fields ...
    (
        "font_size",
        "Font size for terminal display (optional)\nSet to null to use terminal default, or 8-16 for explicit size",
    ),
];
}

Note: Comments are defined next to the struct definition. The config template is generated from Rust code defaults, with all fields commented out so users can uncomment to override.

5. Use in Application Code

Access the config value where needed:

#![allow(unused)]
fn main() {
let font_size = config.display.font_size.unwrap_or(terminal_default);
}

Or pass through App if needed globally:

#![allow(unused)]
fn main() {
app.font_size = config.display.font_size;
}

6. Add Tests

Add tests in tests/config_test.rs or tests/config_integration_test.rs:

#![allow(unused)]
fn main() {
#[test]
fn test_font_size_config() {
    let mut config = AppConfig::default();
    config.display.font_size = Some(12);

    assert_eq!(config.display.font_size, Some(12));
    assert!(config.validate().is_ok());
}
}

7. Update Documentation

Update documentation:

• Add to docs/user-guide/configuration.md
• Mention in README.md if it’s a major feature

Note: Configuration comments are defined in comment constants next to struct definitions (e.g., DISPLAY_COMMENTS, PERFORMANCE_COMMENTS) in src/config.rs. The config template is generated programmatically from these constants.

Implementation Checklist

• Field added to config struct
• Default implementation updated
• Merge logic implemented
• Comments added to comment constant (next to struct)
• Used in application code
• Tests added
• Documentation updated
• All tests passing (cargo test)
• No clippy warnings (cargo clippy)
• Code formatted (cargo fmt)

Best Practices

Choosing Field Types

• Option fields: Use Option<T> for optional settings

  #![allow(unused)]
  fn main() {
  pub font_size: Option<u8>,  // None = use default
  }

• Required fields: Use plain types with sensible defaults

  #![allow(unused)]
  fn main() {
  pub pages_lookahead: usize,  // Always has a value
  }

• Strings: Use String for text values

  #![allow(unused)]
  fn main() {
  pub delimiter: String,  // CSV delimiter character
  }

Sensible Defaults

Ensure defaults match existing behavior:

#![allow(unused)]
fn main() {
impl Default for DisplayConfig {
    fn default() -> Self {
        Self {
            pages_lookahead: 3,
            pages_lookback: 3,
            row_numbers: false,
            row_start_index: 1,
        }
    }
}
}

Clear Config Comments

Comments in the comment constants should:

• Explain what the option does
• Show valid values or ranges
• Provide examples
• Note any interactions with other settings

Good example:

#![allow(unused)]
fn main() {
const PERFORMANCE_COMMENTS: &[(&str, &str)] = &[
    (
        "sampling_threshold",
        "Sampling threshold: datasets >= this size will be sampled for statistics\nSet to higher value to avoid sampling, or lower to sample more aggressively",
    ),
];
}

Poor example:

#![allow(unused)]
fn main() {
const PERFORMANCE_COMMENTS: &[(&str, &str)] = &[
    ("sampling_threshold", "Sampling threshold"),
];
}

Validation

Add validation in AppConfig::validate() for constraints:

#![allow(unused)]
fn main() {
fn validate(&self) -> Result<()> {
    // ... existing validation ...

    // Validate new field
    if self.performance.sampling_threshold == 0 {
        return Err(eyre!("sampling_threshold must be greater than 0"));
    }

    Ok(())
}
}

Testing Edge Cases

Test important scenarios:

• Missing values (uses default)
• Invalid ranges (validation catches)
• Boundary conditions
• Config merging (CLI overrides config)
• TOML parsing (valid syntax)

Adding Colors to Theme

When adding new colors to the theme system, follow these additional steps:

1. Add to ColorConfig Struct

#![allow(unused)]
fn main() {
#[derive(Debug, Clone, Serialize, Deserialize)]
#[serde(default)]
pub struct ColorConfig {
    // ... existing colors ...
    pub new_color: String,  // NEW
}
}

2. Add to ColorConfig Default

#![allow(unused)]
fn main() {
impl Default for ColorConfig {
    fn default() -> Self {
        Self {
            // ... existing colors ...
            new_color: "cyan".to_string(),  // NEW
        }
    }
}
}

3. Add to Validation

#![allow(unused)]
fn main() {
impl ColorConfig {
    fn validate(&self, parser: &ColorParser) -> Result<()> {
        macro_rules! validate_color {
            ($field:expr, $name:expr) => {
                parser
                    .parse($field)
                    .map_err(|e| eyre!("Invalid color value for '{}': {}", $name, e))?;
            };
        }

        // ... existing validations ...
        validate_color!(&self.new_color, "new_color");  // NEW

        Ok(())
    }
}
}

4. Add to Merge Logic

#![allow(unused)]
fn main() {
impl ColorConfig {
    pub fn merge(&mut self, other: Self) {
        let default = ColorConfig::default();
        // ... existing merge logic ...

        if other.new_color != default.new_color {  // NEW
            self.new_color = other.new_color;
        }
    }
}
}

5. Add to Theme Parsing

#![allow(unused)]
fn main() {
impl Theme {
    pub fn from_config(config: &ThemeConfig) -> Result<Self> {
        let parser = ColorParser::new();
        let mut colors = HashMap::new();

        // ... existing color parsing ...
        colors.insert(
            "new_color".to_string(),
            parser.parse(&config.colors.new_color)?,
        );  // NEW

        Ok(Self { colors })
    }
}
}

6. Add Comments to Comment Constant

#![allow(unused)]
fn main() {
// Field comments for ColorConfig
const COLOR_COMMENTS: &[(&str, &str)] = &[
    // ... existing colors ...
    (
        "new_color",
        "Description of the new color and where it's used",
    ),
];
}

Note: Comments are simple text - they’ll be prefixed with # when generating the config. The field itself will appear as # new_color = "cyan" (commented out).

7. Replace Hardcoded Usage

Find and replace hardcoded colors in widgets:

Before:

#![allow(unused)]
fn main() {
Style::default().fg(Color::Cyan)
}

After:

#![allow(unused)]
fn main() {
Style::default().fg(self.color("new_color"))
// or
Style::default().fg(theme.get("new_color"))
}

Color Naming Conventions

• Use descriptive names: sidebar_border not sb
• Be specific: modal_border_active vs sidebar_border (modals vs sidebars)
• Group logically: distribution_normal, distribution_skewed, distribution_other
• Consider purpose: text_primary, text_secondary, text_inverse

Common Patterns

Option Field Pattern

#![allow(unused)]
fn main() {
// Config struct
pub struct Config {
    pub optional_field: Option<T>,
}

// Default
impl Default for Config {
    fn default() -> Self {
        Self {
            optional_field: None,  // No default value
        }
    }
}

// Merge
impl Config {
    pub fn merge(&mut self, other: Self) {
        if other.optional_field.is_some() {
            self.optional_field = other.optional_field;
        }
    }
}

// Usage
let value = config.optional_field.unwrap_or(fallback);
}

Required Field Pattern

#![allow(unused)]
fn main() {
// Config struct
pub struct Config {
    pub required_field: usize,
}

// Default
impl Default for Config {
    fn default() -> Self {
        Self {
            required_field: 10,  // Sensible default
        }
    }
}

// Merge
impl Config {
    pub fn merge(&mut self, other: Self) {
        let default = Config::default();
        if other.required_field != default.required_field {
            self.required_field = other.required_field;
        }
    }
}

// Usage
let value = config.required_field;
}

String Field Pattern

#![allow(unused)]
fn main() {
// Config struct
pub struct Config {
    pub mode: String,
}

// Default
impl Default for Config {
    fn default() -> Self {
        Self {
            mode: "auto".to_string(),
        }
    }
}

// Merge
impl Config {
    pub fn merge(&mut self, other: Self) {
        let default = Config::default();
        if other.mode != default.mode {
            self.mode = other.mode;
        }
    }
}

// Validation
fn validate(&self) -> Result<()> {
    match self.mode.as_str() {
        "option1" | "option2" | "option3" => Ok(()),
        _ => Err(eyre!("Invalid mode: {}. Must be one of: option1, option2, option3", self.mode))
    }
}
}

Resources

• See src/config.rs for existing implementations and comment constants (e.g., PERFORMANCE_COMMENTS, DISPLAY_COMMENTS)
• See tests/config_test.rs for test examples
• Run datui --generate-config to see the generated config template (all fields commented out)

Questions?

If you’re unsure about:

• Which config section to use: Look at similar settings in existing config
• Merge logic: Follow the patterns in existing merge implementations
• Validation: Add validation if there are constraints on the value
• Testing: Look at existing tests for similar config types

Documentation

Datui uses mdBook to build static documentation web pages from markdown files.

The documentation markdown files can be found in the docs subdirectory.

Build Documentation

Install mdBook

If you used the Setup Script, mdBook is already installed.

Building the documentation requires mdbook to be available in your terminal.

I recommend using cargo to install it. It will be available into your ~/.cargo/bin/, where the documentation build script will look for it. You may also add that location to your PATH if you like.

cargo install mdbook

Build

To build the entire documentation site:

scripts/docs/build_all_docs_local.sh

This will populate the book directory with the site’s files.

At the end it will ask you if you would like a server to view the docs, or you can simply open the index.html with your web browser.

To view locally, you can:
  1. Open book/index.html in your browser
  2. Or use a simple HTTP server:
     python3 -m http.server 8000 --directory book
     Then visit: http://localhost:8000

Start a local HTTP server to view the docs? (y/n)

Generated reference: command-line options

docs/reference/command-line-options.md is generated automatically from the application’s Clap definitions. Do not edit it manually.

The docs build process (build_single_version_docs.sh, build_all_docs_local.sh) copies docs/ to a temp directory, generates CLI options into that copy, then runs mdbook from the temp tree.

To emit the options markdown on demand:

python3 scripts/docs/generate_command_line_options.py              # print to terminal
python3 scripts/docs/generate_command_line_options.py -o path.md   # write to path

Check documentation links

Use lychee to check built documentation for broken links:

cargo install lychee
./scripts/docs/check_doc_links.sh [--build] [--online] [PATH]

• --build: Build docs for main first (build_single_version_docs.sh main), then check.
• --online: Also check external URLs (default: offline, internal links only).
• PATH: Directory to check (default: book/main). Relative paths are resolved from the repo root.

By default the script checks internal links only (--offline), so it runs quickly and does not require network access. Use --online to verify external URLs. The script exits with a non-zero code if any broken links are found.

Demos

The Datui demo animations are created using vhs, which lets you script and record keystrokes to a terminal app.

Prerequisites

VHS

See vhs install instructions.

JetBrainsMono Nerd Font

• Get it from nerdfonts.com and install it manually
• Get it from your distribution’s package manager
  • Arch Linux
  • Other distributions may have their own packages

Define Tapes

The vhs application uses .tape files to script keystrokes. See Datui’s here. Only tape files matching the {number}-{name}.tape format (e.g. 01-basic-navigation.tape) are included when generating all demos.

Generating the Animations

Run generate_demos.py to use vhs to generate an animated gif file for each matching tape. The script builds the debug binary, then runs VHS in parallel (one process per tape by default, using all available cores).

The script runs a debug build and uses that binary when creating the demos.

# Generate all demos (parallel, uses all cores)
python scripts/demos/generate_demos.py

Or if the script is executable:

scripts/demos/generate_demos.py

Useful command-line options

Examples:

# Generate only the second demo
python scripts/demos/generate_demos.py --number 2

# Generate all demos using 4 worker processes
python scripts/demos/generate_demos.py -n 4

The animations will be placed in the demos directory. A percentage bar shows progress as each tape finishes.

During the creation of the documentation, these animations are copied into a demos/ subdirectory of the generated site. From there, the files may be referenced from within the docs.

Contributing

Thank you for your interest in contributing to Datui!

After cloning the repo, follow the Setup instructions below to get started.

Setup

Setup Script

TLDR: The entire setup process can be automated by running

python scripts/setup-dev.py

The script will:

• Set up the Python Virtual Environment
• Set up pre-commit hooks
• Generate sample data needed to run the tests
• Configure and build the documentation

Run the script again at any time to update everything.

Python Virtual Environment

There are Python scripts in the /scripts directory that are used to do things like build test data, documentation, and demo gifs.

Setting up a virtual environment with dependencies for these scripts will ensure you can run them all.

A common convention is to create a virtual environment in the .venv/ directory of the repository. The .gitignore is set up to ignore this location so that files there aren’t added by mistake.

python -m venv .venv

Then activate the virtual environment.

source .venv/bin/activate

Once activated, install dependencies used to run the availble Python scripts.

pip install -r scripts/requirements.txt

You’re now ready to run the tests.

Pre-commit Hooks

To encourage consistency and quality, the CI build checks the source code of the application for formatting and linter warnings.

This project uses pre-commit to manage git pre-commit hooks which automatically run the same code quality checks in your repository before commits are made.

Installing Pre-commit and Hooks

If you used the Setup Script, the pre-commit hooks are already installed.

1. Install pre-commit:

   If you set up a Python virtual environment using the instructions above then you already have everything you need. Activate it and skip this step.

   Otherwise, install pre-commit using your desired method.

   # Using pip
   pip install pre-commit

   # Or using homebrew (macOS)
   brew install pre-commit

   # Or using conda
   conda install -c conda-forge pre-commit


2. Install the git hooks:

   pre-commit install


   This installs the hooks into .git/hooks/ so they run automatically on commit.

   Note: You only need the pre-commit command accessible when you need to use it to manually run or update the hooks. Once installed into your repo, the hooks themselves do not require pre-commit.

   See the pre-commit documentation for more information about its features.

The following hooks are configured:

• cargo-fmt: Automatically formats Rust code with cargo fmt

  • If code needs formatting, it will be formatted and the commit will fail
  • Stage the formatted changes and commit again

• cargo-clippy: Runs cargo clippy --all-targets -- -D warnings

  • Fails if clippy finds any warnings
  • Fix them and commit again

Hooks run automatically when you git commit. If any hook fails, the commit is aborted.

Running Hooks

Run all hooks manually:

pre-commit run --all-files

Run a specific hook:

pre-commit run cargo-fmt --all-files
pre-commit run cargo-clippy --all-files

Skipping Hooks

If you need to skip hooks for a specific commit (not recommended):

git commit --no-verify -m "Emergency fix"

Updating hooks

Update hook versions and configurations:

pre-commit autoupdate

Troubleshooting

Hook not running?

• Make sure you ran pre-commit install
• Check .git/hooks/pre-commit exists

Hooks too slow?

• Only changed files are checked by default
• Use SKIP=hook-name git commit to skip specific hooks

Adding Configuration Options

For detailed instructions on adding new configuration options to datui, see the dedicated Guide to Adding Configuration Options.

Quick summary:

1. Add field to appropriate config struct (src/config.rs)
2. Update Default implementation
3. Add merge logic in merge() method
4. Add comments to comment constant (next to struct)
5. Use the value in application code
6. Add tests
7. Update user documentation

The guide includes step-by-step instructions, code examples, merge rules, best practices, and special instructions for adding theme colors.

Building Packages

Datui can be packaged for Debian/Ubuntu (.deb), Fedora/RHEL (.rpm), and Arch Linux (AUR).

Prerequisites

• Rust: Install via rustup
• Python 3: For running the build script
• Cargo packaging tools: Install as needed:

cargo install cargo-deb           # For .deb packages
cargo install cargo-generate-rpm  # For .rpm packages
cargo install cargo-aur           # For AUR packages

Building Packages

Run from the repository root:

# Build a .deb package (Debian/Ubuntu)
python3 scripts/build_package.py deb

# Build a .rpm package (Fedora/RHEL)
python3 scripts/build_package.py rpm

# Build AUR package (Arch Linux)
python3 scripts/build_package.py aur

The script automatically:

1. Runs cargo build --release
2. Generates and compresses the manpage
3. Invokes the appropriate cargo packaging tool
4. Reports the output file locations

Options

• --no-build: Skip cargo build --release (use when artifacts already exist)
• --repo-root PATH: Specify repository root (default: auto-detected via git)

# Example: build .deb without rebuilding (artifacts must exist)
python3 scripts/build_package.py deb --no-build

Output Locations

CI and Releases

The same script is used in GitHub Actions:

• CI (ci.yml): Builds and uploads dev packages (.deb, .rpm, .tar.gz) on push to main
• Release (release.yml): Attaches .deb, .rpm, and Arch .tar.gz to GitHub releases

Arch Linux Installation

Arch users can install from the release tarball:

# Download the tarball from a release, then extract and install
tar xf datui-X.Y.Z-x86_64.tar.gz
sudo install -Dm755 datui /usr/bin/datui
sudo install -Dm644 target/release/datui.1.gz /usr/share/man/man1/datui.1.gz

Or use the included PKGBUILD with makepkg.

AUR Release Workflow

To update the AUR package when you release a new version:

1. Checkout the release tag and build the AUR package:

   git checkout vX.Y.Z
   cargo build --release --locked
   python3 scripts/build_package.py aur --no-build


2. Generate .SRCINFO and copy to your AUR repo:

   cd target/cargo-aur
   makepkg --printsrcinfo > .SRCINFO
   cp PKGBUILD .SRCINFO /path/to/aur-datui-bin/


3. Commit and push to the AUR:

   cd /path/to/aur-datui-bin
   git add PKGBUILD .SRCINFO
   git commit -m "Upstream update: X.Y.Z"
   git push


Use stable release tags only (e.g. v0.2.11); the AUR package fetches the tarball from the GitHub release. Dev builds are available from the dev release tag.

Automated AUR updates (GitHub Actions)

The release workflow can push PKGBUILD and .SRCINFO to the AUR automatically when you push a version tag. It uses KSXGitHub/github-actions-deploy-aur: the action clones the AUR repo, copies our PKGBUILD and tarball, runs makepkg --printsrcinfo > .SRCINFO, then commits and pushes via SSH.

Required repository secrets (Settings → Secrets and variables → Actions):

If these secrets are not set, the “Publish to AUR” step will fail. To disable automated AUR updates, remove or comment out that step in .github/workflows/release.yml.

More Information

For detailed information about packaging metadata, policies, and AUR submission, see plans/packaging-deb-rpm-aur-plan.md.

Python Bindings

The datui-pyo3 crate and the datui Python package let you open the datui TUI from Python with a Polars LazyFrame or DataFrame (e.g. datui.view(lf) or datui.view(df)). Data is passed via binary (from LazyFrame.serialize()). Use a Polars Python version built with the same Rust Polars as this extension (e.g. polars 1.35.x uses Rust 0.51). The crate lives at crates/datui-pyo3 and is excluded from the Cargo workspace; it is built with maturin from the python/ directory.

Summary

Use a virtual environment so the extension and package are installed into that env.

Virtual environment

Use a venv so the datui package and its dependencies (e.g. polars) are isolated.

The Setup Script (scripts/setup-dev.py) creates .venv and installs scripts/requirements.txt which contain all the requirements here.

Create and activate (from repo root):

python -m venv .venv
source .venv/bin/activate

Install build and test dependencies in the venv:

pip install --upgrade pip
pip install maturin "polars>=0.20" "pytest>=7.0"

Building locally

Build and install the full datui package (Python wrapper + Rust extension) into the current environment. From the python/ directory:

# Activate venv first (see above)
cd python
maturin develop

• Debug (default): faster to compile, larger binary. Omit --release.

• Release: add --release for a smaller, faster binary:

  maturin develop --release


You need Rust and Python development headers (e.g. python3-dev on Debian/Ubuntu). Maturin will use the Python that runs maturin (or the one in your activated venv). From the repo root you can run cd python && maturin develop.

Testing

With the package installed in your venv (after cd python && maturin develop), run the Python tests from the repo root:

pytest python/tests/ -v

Tests check that the module imports, that view, view_from_json, and run_cli exist, and that invalid inputs raise (they do not run the TUI).

Running

In Python (view a LazyFrame):

import polars as pl
import datui

lf = pl.scan_csv("data.csv")
datui.view(lf)   # Opens TUI; press q to exit

CLI from the same env:
If you built the datui binary (cargo build (from repo root)) and it’s on your PATH, the datui console script (from pip / maturin) will use it. Otherwise install the CLI separately (e.g. from GitHub releases or your system package manager).

More

• User-facing install and usage: python/README.md in the repo.
• PyPI package: pip install datui

PyPI Deployment Checklist

This document summarizes what is in place and what remains to deploy the datui Python package to PyPI.

Already in place

• Python package (python/): pyproject.toml, README, tests; maturin build from crates/datui-pyo3.
• Console script: datui = "datui:run_cli" so pip install datui provides the datui command (uses bundled binary when present).
• Release workflow (.github/workflows/release.yml):
  • Triggered on tags v*.
  • pypi job: builds release binary, copies to python/datui_bin/, runs maturin build --release --out dist from python/, uploads python/dist/*.whl to the GitHub release, then runs twine upload --skip-existing python/dist/*.whl when PYPI_API_TOKEN is set.
• Version alignment: scripts/bump_version.py release updates root Cargo.toml, crates/datui-lib, crates/datui-cli, and python/pyproject.toml; use it before tagging (e.g. bump_version.py release --commit --tag).
• CI: Python job builds the extension with maturin and runs pytest (see note below on polars version).

Remaining for PyPI deploy

1. PyPI metadata in python/pyproject.toml

Add standard fields so the package is valid and discoverable on PyPI:

• License: e.g. license = "MIT" (repo uses MIT).
• Classifiers (optional but recommended): e.g. Programming Language :: Python :: 3, License :: OSI Approved :: MIT License, Programming Language :: Rust, etc.

Example addition under [project]:

license = "MIT"
classifiers = [
    "License :: OSI Approved :: MIT License",
    "Programming Language :: Python :: 3",
    "Programming Language :: Python :: 3.8",
    "Programming Language :: Python :: 3.9",
    "Programming Language :: Python :: 3.10",
    "Programming Language :: Python :: 3.11",
    "Programming Language :: Python :: 3.12",
    "Programming Language :: Rust",
    "Topic :: Scientific/Engineering",
]

Optional: authors, maintainers, keywords, repository, homepage.

2. PyPI API token (secret)

The release step only runs when a secret is present:

- name: Publish to PyPI
  if: secrets.PYPI_API_TOKEN != ''

To enable publishing:

1. Create a PyPI account (or use an existing one).
2. Create an API token at PyPI Account → API tokens.
3. Add a repository secret in GitHub: Settings → Secrets and variables → Actions → New repository secret; name it PYPI_API_TOKEN and paste the token.

Without this secret, the workflow still builds and uploads wheels to the GitHub release; it simply skips twine upload.

3. CI Python job: align polars version (recommended)

The CI Python job installs polars>=0.20 for tests, but the package requires polars>=1.35,<1.36. To avoid testing against an incompatible Polars version, change the install line in .github/workflows/ci.yml (in the job that runs maturin develop and pytest) to use the same constraint, e.g.:

pip install maturin "polars>=1.35,<1.36" "pytest>=7.0"

4. Optional: multi-platform wheels

The current pypi job runs only on ubuntu-latest, so only a Linux x86_64 wheel is built and uploaded. To publish wheels for macOS (x86_64 + arm64) and Windows:

• Add a matrix (e.g. runs-on: [ubuntu-latest, macos-latest, windows-latest]) and build the wheel per runner.
• Collect all python/dist/*.whl (and optionally sdist) as artifacts, then run a single twine upload step that uploads every built file (e.g. from a job that downloads all artifacts and runs twine upload --skip-existing **/*.whl **/*.tar.gz).

You can ship a Linux-only wheel first and add more platforms later.

5. Optional: source distribution (sdist)

PyPI allows uploading an sdist (e.g. datui-0.2.17.tar.gz) so users can pip install from source. Maturin can build an sdist; add that to the build step if desired and include the resulting .tar.gz in the twine upload step.

Release flow (summary)

1. Bump and prepare release:
   python scripts/bump_version.py release --commit --tag
   This updates versions (including python/pyproject.toml) and creates the tag (e.g. v0.2.17).
2. Push and push tags:
   git push && git push --tags
3. GitHub Actions runs on the tag: builds binary, docs, packages, and the Python wheel; creates/updates the GitHub release and uploads assets.
4. If PYPI_API_TOKEN is set, the workflow runs twine upload --skip-existing python/dist/*.whl and the package appears on PyPI.

After the first successful run with the token, pip install datui "polars>=1.35,<1.36" will install from PyPI.
